Mathematical Operations 

This page describes the details of how different integer types are handled in CVL. The exact rules for casting between uint and mathint types are described in detail.

Warning

The details of implicit and explicit casting between uint*, int*, and mathint in CVL are complicated, and depend not only on the expressions being cast but also on the context in which the resulting expressions are used. For example, assignment statements work differently than return statements.

This document contains the best existing documentation for the current implementation, although it is missing some detail. However, this portion of CVL is also in the process of being redefined and simplified.

In the mean time, we recommend the following rules of thumb:

where possible, use mathint
use uint or int types only when you need to pass values to solidity functions
defer casting from mathint to uint until as late as possible.

Contents

Mathematical Operations

Mathematical operations 

In CVL, arithmetic operators (+, -, * and /) are overloaded: they could mean a machine-arithmetic operation that can overflow, or a mathematical operation that does not overflow. The default interpretation used in almost all cases is the mathematical one. Therefore, the assertion below holds:

uint x;
assert x + 1 > x;

The syntax supports Solidity’s integer types (uintXX and intXX) as well as the CVL-only type mathint representing the domain of mathematical integers (ℤ). Using these types allows controlling how arithmetic operators such as +, -, and * are interpreted. Therefore, in the following variant on the above example, if we wish the + operation to be the overflowing variant, we can write the following:

uint x;
uint y = x + 1;
assert y > x;

The assertion here will fail with x = MAX_INT, since then y is equal to 0. If we write instead:

uint x;
mathint y = x + 1;
assert y > x;

The meaning is the same as in the first snippet since an assignment to a mathint variable allows non-overflowing interpretations of the arithmetic operators.

The only case in which arithmetic operators in expressions are allowed to overflow is within arguments passed to functions, or generally, whenever we interact with the code being checked. Solidity functions cannot take values that do not fit within 256 bits. Therefore the tool will report an overflow error if mathint variable is passed directly as a function argument.

uint256 MAX_INT = 2^256 - 1;
foo(MAX_INT + 1); // equivalent to invoking foo(0)
assert MAX_INT + 1 == 0; // always false, because ‘+’ here is mathematical
mathint x = MAX_INT + 1;
foo(x); // error

Maximum values 

The maximum values of Solidity integer types are available as the following variables in CVL:

max_uint and max_uint256
max_uint160 and max_address
max_uint128
max_uint96
max_uint64
max_uint32
max_uint16
max_uint8

Implicit casting 

Only the following implicit cast operations are supported in CVL:

numberLiteral can implicitly cast to int* uint* mathint address and bytesK .
- Note, however, that before casting a numberLiteral to target type int* uint* address or bytesK, it is (statically) checked that the value of the numberLiteral is within the bounds for a safe cast to the target type (e.g. numberLiteral >= 0 && numberLiteral <= 2^256 - 1 for uint256). In case the value is out of bounds, an explicit cast is required. There is no bounds checking when target type is mathint.
- Sometimes, even when the numberLiteral expression is within bounds, it is not possible to implicitly cast the expression to the target type when the value of expression cannot be determined statically (e.g. uint256 uu = true ? 42 : 24). In this case, an explicit cast is required.
For uint* we have the following cases for implicit casts:
- uint_k1 can implicitly cast to uint_k2 when k1 <= k2
- uint_k1 can implicitly cast to address when k1 <= 160. Moreover, address can implicitly cast to uint256, but not the other way around. (Note : This is different from earlier behavior because before, uint256 and address were aliases).
- uint* can implicitly cast to mathint. (Note that there is a difference in implicit and explicit casts from uint256 to mathint when the expression value is outside the range of a uint256 variable. While in the implicit cast the uint256 value remains unchanged when converted to mathint, the explicit cast takes a mod of the value with 2^256. Again, this difference will be “visible” only when casting unsafely from a uint to mathint, i.e. when the uint value is greater than 2^256)
NOTE: When performing an implicit cast, the type of the expression being cast changes to the targetType except in the case when the expression is either a variable or a ghostVariable. In these two cases, it is only checked that the expression type is a subtype of the targetType. If the expression type is a subtype of the targetType the expression is successfully type checked. Consider the following example:

uint256 x;                         // x has type uint256
mathint m1;                        // m1 has type mathint
mathint y = x + m1;                // check that x's type (uint256) is a subtype of targetType (mathint) -- true
assert x < max_uint                // x STILL has type uint256

Explicit casting 

An explicit cast operator tries to convert the type of an operand from its original type to the target type. The conversion below specifies how the original expression is modified to a value in the target type. Furthermore, safe_cast_bounds specify the range of values for the original expression under which the conversion to the target type is safe to perform (i.e. does not result in an overflow). When the value is out of safe bounds (say in case of to_uint256(-1)), it results in an overflow. Here are the rules for performing different cast operations:
To Unsigned Int
- Syntax: to_uint256(exp)
- Rules:
  - mathint to uint
    - conversion: exp mod 2^256
    - safe_cast_bounds for warning: exp >= 0 && exp <= 2^256 - 1
  - Signed int To unsigned uint
    - conversion: exp
    - safe_cast_bounds: None
  - NumberLiteral to UnsignedInt
    - conversion: exp mod 2^256
    - safe_cast_bounds for warning: exp >= 0 && exp <= 2^256 - 1
  - bytesK to UnsignedInt
    - conversion: exp
    - safe_cast_bounds for warning: None
To Signed Int
- Syntax: to_int256(exp)
- Rules:
  - mathint to SignedInt
    - conversion: exp mod 2^256
    - safe_cast_bounds for warning: exp >= -2^255 && exp <= 2^255 - 1
  - UnsignedInt to SignedInt
    - conversion: exp
    - safe_cast_bounds for warning: exp <= 2^255 - 1
  - NumberLiteral to SignedInt
    - conversion: exp
    - safe_cast_bounds for warning: exp <= 2^255 - 1
To mathint
- Syntax: to_mathint(exp)
- Rules:
  - UnsignedInt to mathint
    - conversion: exp
    - safe_cast_bounds: None
  - SignedInt to mathint
    - conversion: exp <= 2^255 - 1 ? exp : exp - 2^256
    - safe_cast_bounds: None
  - NumberLiteral to mathint
    - conversion: exp
    - safe_cast_bounds: None

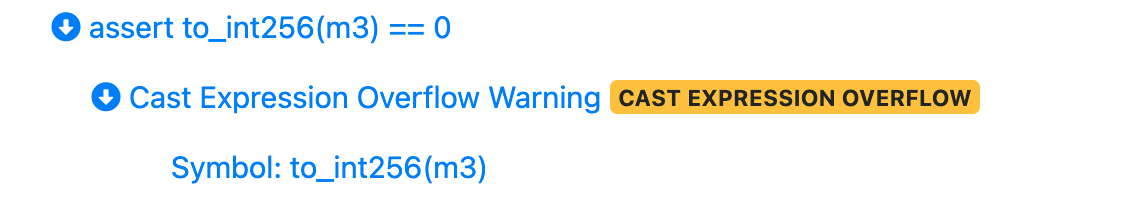

When an overflow occurs (i.e. when the inner expression is out of safe cast bounds for a cast operator), a warning is displayed in the call trace:

Important Note: This warning is displayed only when

The rule does not pass and a counterexample is generated &&
The tool is able to statically determine the value of the inner expression (e.g. m3 above) &&
The inner expression value is out of bounds for a safe cast

Thus, a rule such as

mathint x1 = -3;
uint256 x2 = uint256(x1);
assert x2 > 0;

is not going to display the warning because the rule passes (as per the conversion above x2 is -3 mod 2^256 which is positive) and no counterexample is generated.
